Product Details
Place of Origin: China
Brand Name: Baofeng
Certification: CE,ROHS
Model Number: UV-5R
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: USD17-USD17.5
Packaging Details: Product size:58*240*32mm
Delivery Time: 5-8 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 Piece/Pieces per Week
Channel: |
128 Channels |
Model NO.: |
UV-5R |
Type: |
Handheld |
Battery: |
1800mAh |
Material: |
ABS |
Frequency Range: |
65-108MHz(FM Receive Only) |
Operating Voltage: |
DC 7.4V |
Dimension(W X H X D): |
58*240*32 |
Weight: |
238g |
Power Adapter: |
Input: AC100-240V,Output:DC 10V/500mA |
Channel: |
128 Channels |
Model NO.: |
UV-5R |
Type: |
Handheld |
Battery: |
1800mAh |
Material: |
ABS |
Frequency Range: |
65-108MHz(FM Receive Only) |
Operating Voltage: |
DC 7.4V |
Dimension(W X H X D): |
58*240*32 |
Weight: |
238g |
Power Adapter: |
Input: AC100-240V,Output:DC 10V/500mA |
First of all, uv-5r model has an excellent price for such high quality product. BaoFeng radios are famous for being small in size which makes them comfortable to use, and this model is not an exception.

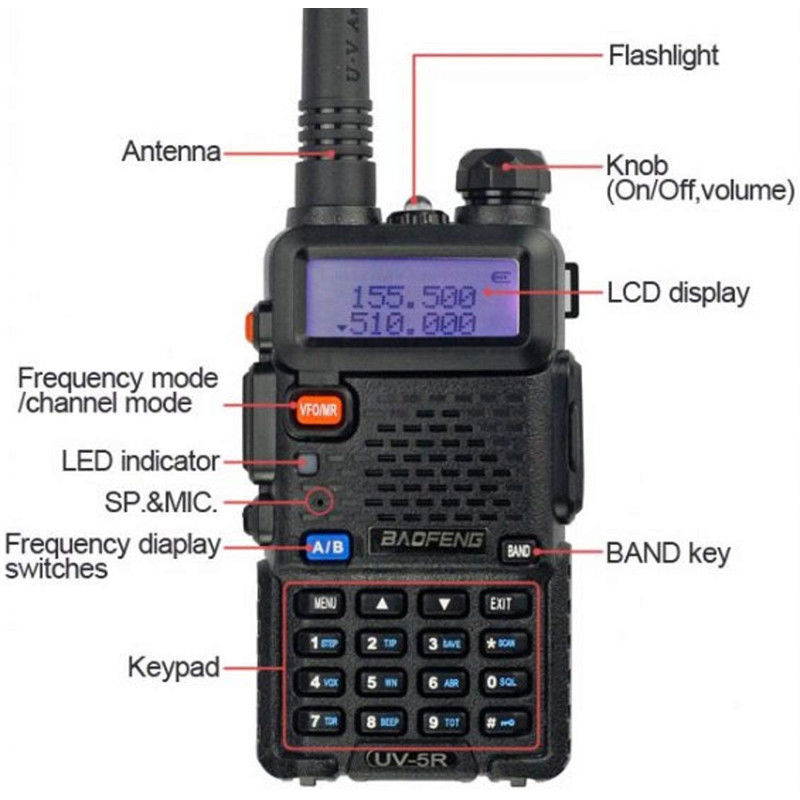

This BAOFENG UV-5R transceiver is a micro-miniature multiband FM transceiver with extensive receive frequency coverage, providing local-area two-way amateur communications along with unmatched monitoring capability.
Main Features:
Channel No.: 128
Frequency Stability: ±2.5ppm
Antenna: High gain Dual Band antenna
Antenna Impedance: 50?
Operating Voltage: DC 7.4V
Frequency Range: 65-108MHz(FM Receive only) 136-174MHZ and 400-520HZ (TX/RX)
Mode of operation: Simple or semi-duplex
Dimension (W x H x D): 100 x 52 x 32 mm
Weight: 250g (including battery, antenna)
Transmitter Output power: 4W / 1W (Max 5W)
Modulation Mode: 16k?F3E / 11k?F3E
Maximum deviation: <5kHz(Wide) / <2.5kHz(Narrow)
Spurious Radiation: <7?W
Adjacent Ch. power: <=-65dB(Wide) / <=-60dB(Narrow)
Pre-emphasis characteristics: 6dB
Current: <=1.6A(5W)
CTCSS/DCS deviation: 0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)
Intermediation sensitivity: 8-12mv
Intermediation distortion: <10%
Technical Specification:
| Dual band / dual display / dual standby | A/B band independent operation(UV UU VV) | |
| 128 groups channels storage | Shortcut menu operation mode | |
| VFO & Memory channels scan | Emergency Alarm | |
| Time-out Timer (TOT) | 0~9 grades VOX selectable | |
| PTT & ANI ID | FM radio and 25 stations storage | |
| Voice commanding | 50 CTCSS/104 DCS | |
| High/Low TX power selectable | Busy channel lock-out(BCLO) | |
| DTMF function | OFF SET function | |
| Wide/Narrow Band(25kHz/12.5kHz) | Yes | |
| VOX function | Yes | |
| Busy lockout function | Yes | |
| Frequency step | Yes | 2.5/5/6.25/10/12.5/25KHz |
| Scanning function | Yes | |
| Monitor function | Yes | |
| Time-out Timer (TOT) function | Yes | |
| LCD display | Yes | |
| Dual display | Yes | |
| Battery voltage display | Yes | |
| Channel name display editing | Yes | |
| Signal strength indicator | Yes | |
| Keypad lock function | Yes | |
| Built-in Led torch | Yes | |
| FM radio | Yes | |
| Wire clone function | Yes | |
| Emergency alarm function | Yes | |
| Low battery alarm | Yes | |
| Power saving function | Yes | |
| High/Low TX power selectable | Yes | 5W/1W |
| ROGER SET | Yes | |
| Chinese English voice prompt | Yes | |
| PC software programmable | Yes | |
| Rated Voltage | 7.4V DC±10% | |
| Output power | ≤ 5W | |
| Battery type | Li-ion battery | |
| Battery capacity | 1800mAh | |
| Working temperature | -20~+50°C | |
| Antenna Impedance | 50Ω | |
| Weight | 255g | |
| Dimension(L×W×H) | 58×32×110mm(Not Antenna) | |
| Specification | ||
| Frequency stability | ±2.5ppm | |
| Carier wave tolerance | 5ppm | |
| Modulation | 16kΦF3E / 11kΦF3E | |
| Max frequency deviation |
< 5kHz(Wide) < 2.5kHz(Narrow) |
|
| Modulation character | 6 dB per fold frequency patch | |
| Emission current | < 1.6A(5W) | |
| CTCSS / DCS |
0.5±0.1kHz(Wide) 0.3±0.1kHz(Narrow) |
|
| Sensitivity | < 0.16μV(12dB SINAD) | |
| Silent sensitivity | < 0.2μV | |
| Intermediation Distortion | <10% | |
| Inter modulation | 8-12mv | |
| Adjacent channel selectivity( wide/narrow) | <-65dB(Wide) <-60dB(Narrow) | |
