Product Details
Place of Origin: China
Brand Name: OEM
Certification: CE，RoHS
Model Number: C1
Payment & Shipping Terms
Minimum Order Quantity: 2pcs
Price: Negotiable
Packaging Details: Carton size:662*321*405mm/25.6KG/27kg
Delivery Time: 15-30 working days
Payment Terms: T/T, Western Union, , L/C
Supply Ability: 10000Paris Per Month
Product Name:: |
Walkie Talkie |
Battery Capacity:: |
1500mAh |
Frequency Range:: |
VHF(136-174MHz) UHF(400-470MHz) |
Talk Range:: |
6KM |
Output Power:: |
3 Watts |
Channel:: |
16 |
Certification:: |
Ce, RoHS |
Usage:: |
Sport Travel Outdoor Camping Hiking |
OEM: |
YEAH |
Product Name:: |
Walkie Talkie |
Battery Capacity:: |
1500mAh |
Frequency Range:: |
VHF(136-174MHz) UHF(400-470MHz) |
Talk Range:: |
6KM |
Output Power:: |
3 Watts |
Channel:: |
16 |
Certification:: |
Ce, RoHS |
Usage:: |
Sport Travel Outdoor Camping Hiking |
OEM: |
YEAH |

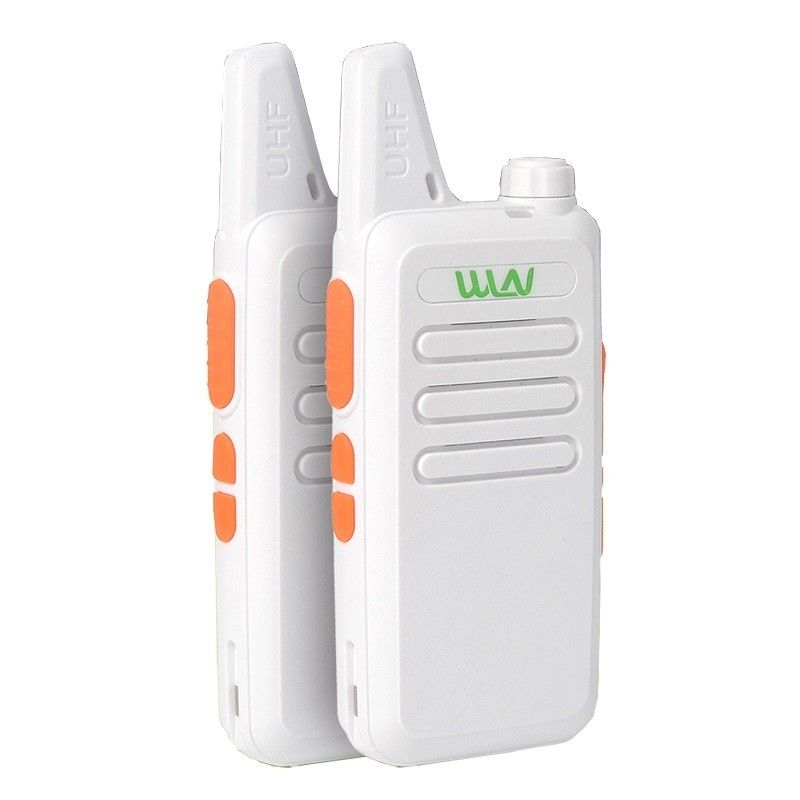

16 Channels UHF Two Way Radio 6KM Handheld Walkie Talkies
Technical Specification:
|
General |
|
|
Model NO. |
KD-C1 ham radio |
|
Frequency Range |
UHF 400-470MHz |
|
Channel Capacity |
16 |
|
Channel Spacing |
25KHz |
|
Output power |
5W |
|
Operated Voltage |
DC 3.7V |
|
Battery |
1500MAh Li-ion |
|
Battery Life |
(5-5-90 duty cycle) About 8 hours |
|
Frequency Stability |
±2.5ppm |
|
Operated Temperature |
-30°c-+60°c |
|
Antenna Impedance |
50Ω |
|
Dimensions (L*W*H) (with battery, without antenna) |
110*50*32 mm |
|
Weight (with battery/antenna) |
198g |
|
Communication Range |
about 6km |
|
Transmitter |
|
|
RF Power Output |
3W |
|
Modulation |
F3E |
|
Spurious Emission |
≤65dB |
|
FM Noise |
≤-45dB(W) ≤-40dB (N) |
|
Audio Distortion |
≤5% |
|
Transmitting Current |
≤1.3A |
|
Receiver |
|
|
Sensitivity (12dB SINAD) |
≤0.20 uV |
|
Selectivity |
55dB/50dB |
|
Intermodulation |
≥65dB |
|
Adjacent Channel Selectivity |
≥60dB |
|
Spurious Response |
≥60dB |
|
FM Noise |
45dB/40dB |
|
Audio Power Output |
1000mW |
|
Audio Distortion |
≤5% |
|
Standby Current |
≈15mA (with battery save on) |
FAQ
Q1 : Can I get a price list or discount?
A: pls contact us if you want to make order,prices base on the quantity&packing&specifications,so pls check all the details before make order.
Q2: About the customized service.
A: We have a product development department which always design new products for customers,if you want a new design and need help,pls contact us to check the details.Surely,for small order,we also accept customized service,such as product stickers,box design or others.
Q3: After-sale service?
A: 1 year warranty for most kinds of our products.However,we also help our customers solve the problem even if the warranty expired.
Q4: Payment
A: We support T/T,Western Union,Money Gram,Escrow,Paypal,etc
Q5: Transportation
A: Transported by DHL,UPS,EMS,Fedex,Air freight,Sea freight.it depend on customers' choices.
